BabyDan Elin Deluxe Safety Gate, Nature/Silver
Wall-mounted
This Deluxe version has improved brackets that make installation easier and more flexible. The brackets allow the gate to be reversed, allowing you to change the opening direction as needed.
To make installation even easier, a mounting strip is included. This self-adhesive paper strip shows exactly where the holes should be drilled, ensuring a precise and smooth installation.

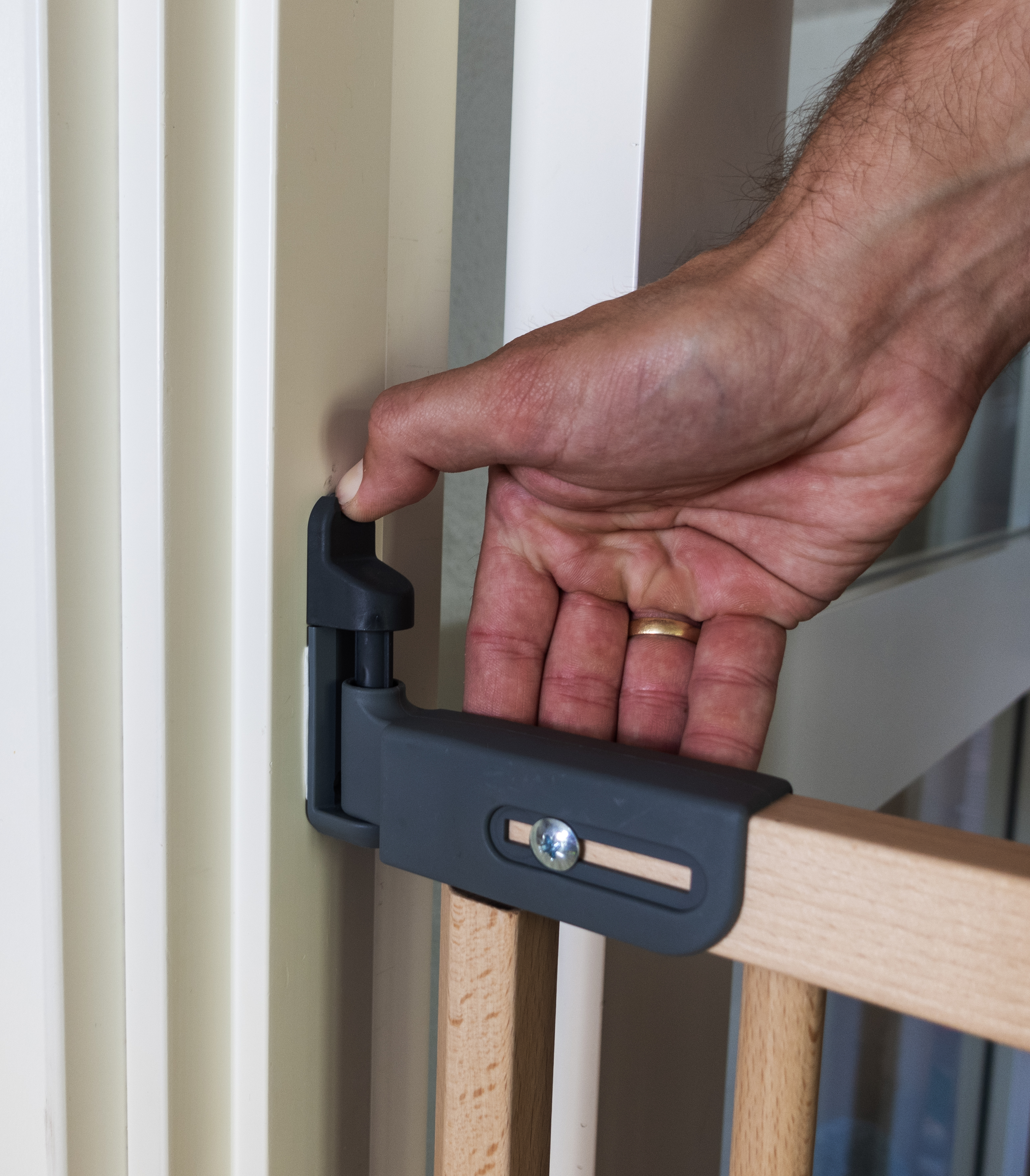

The ELIN Deluxe gate is unique with its adjustable wall brackets that can be swivelled and mounted both inside and outside door frames and at oblique angles. This provides a wide range of applications and ensures that the gate can be used in many different situations.
The gate itself measures 69 cm from top to bottom. When mounted on the wall, the gate measures 79 cm from the top of the top wall bracket to the bottom of the bottom wall bracket.
All our wooden grilles are FSC® certified (FSC-C130052). When you buy wood grilles that are FSC labelled, it means that you are helping to ensure decent conditions for all parties in the process from forest to gate. In other words, you help ensure that plant and animal life is protected and that no more trees are felled than the forest can support. At the same time, it ensures that all the people involved in the felling, transport and production of the wood are guaranteed a decent wage and good working conditions.
The product is a natural product made of wood. Therefore, each product will be unique in appearance, colour and character and may differ slightly from the pictures.
Find assembly instructions and videos at babydan.com/manuals
Please note:
- If BabyDan ELIN Deluxe is mounted inside a door frame, it can cover openings between 67-100.5 cm.
- If BabyDan ELIN Deluxe is mounted on the outside of a door frame, it can cover openings between 62.5-96 cm.
- This product is a wall-mounted safety gate that must be mounted with screws in a wall or door frame for proper and safe installation. Screws for wood are included in the package.
- If mounted on a wall with skirting, a spacer on the wall that is at least as thick as the skirting is required for correct and secure installation.
BabyDan Elin Deluxe Safety Gate, Nature/Silver
Specifications
Type of mounting
Wall-mounted
Height
69 cm / 27.17"
Width
106.5 cm / 41.93"
Depth
5 cm / 1.97"
Minimum Opening
62.5 cm / 24.61"
Maximum Opening
100.5 cm / 39.57"
Distance Between Bars (cm)
5 cm / 1.97"
Material
European FSC® certified beechwood (FSC-C130052)
Color
Naturally
Item Number
# 501440
Safety Standard
EN 1930 : 2011
Warnings
Important! Read and follow these instructions and keep for future reference
Warning: Incorrect installation can be dangerous
Warning: Do not use the safety barrier if any components are damaged or missing
WARNING: The safety barrier must not be fitted across windows
Be aware of hazards associated with children using or climbing over the safety barrier. Never climb over the gate. Never allow children to swing on the gate
This safety barrier is for domestic use only
When fitted as instructed, between two clean structurally sound surfaces, this product conforms to EN 1930:2011
If the safety barrier is used at the top of the stairs, it should not be positioned below the top level
If the safety barrier is used at the bottom of the stairs, it should be positioned at the front of the lowest tread possible
Please note that this product not necessarily prevents accidents to happen. Never leave your child unattended
This gate is designed for children up to 24 months. However, this guidance should be constantly monitored against your child’s own development, as individual children’s skills do develop at different ages
Important: The screws provided are only intended for fixing into wood. If fixing into other material, use appropriate screws and wall plugs(4 mm in diameter)
If mounting onto brick, drywall or other dissimilar surfaces, it may be necessary to mount a smooth surface such as a wooden batten on to the wall
If the gate is damaged or has been exposed to an accident it must not be used again
Only use original spare parts for this product
The safety barrier has a manual closing system
Always check that the safety barrier is correctly closed and locked
The safety barrier should be checked regularly to ensure that it is secure and functioning in accordance with these instructions
This safety gate is made from metal
Only clean using warm soapy water, or a damp cloth. Do not use abrasive cleaners or bleach
Features
- Fits openings from 62.5-100.5 cm
- FSC®-certified safety gate (FSC-C130052)
- Reversible brackets make it easy to change the opening direction
- Mounting strip ensures precise installation
- Unique childproof Quick Release function for quick installation and removal
- Can be operated with one hand
- Flexible, swivelling wall brackets for mounting both inside and outside door frames and at angled angles
- Wall-mounted safety gate for extra stability.
